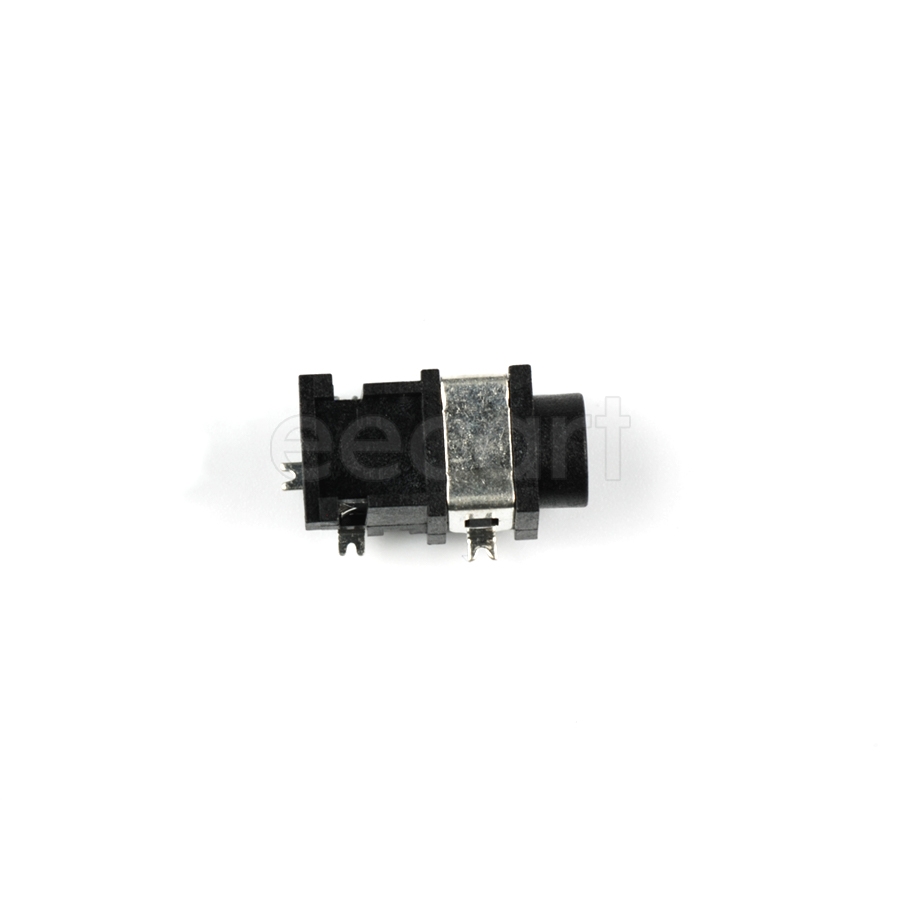

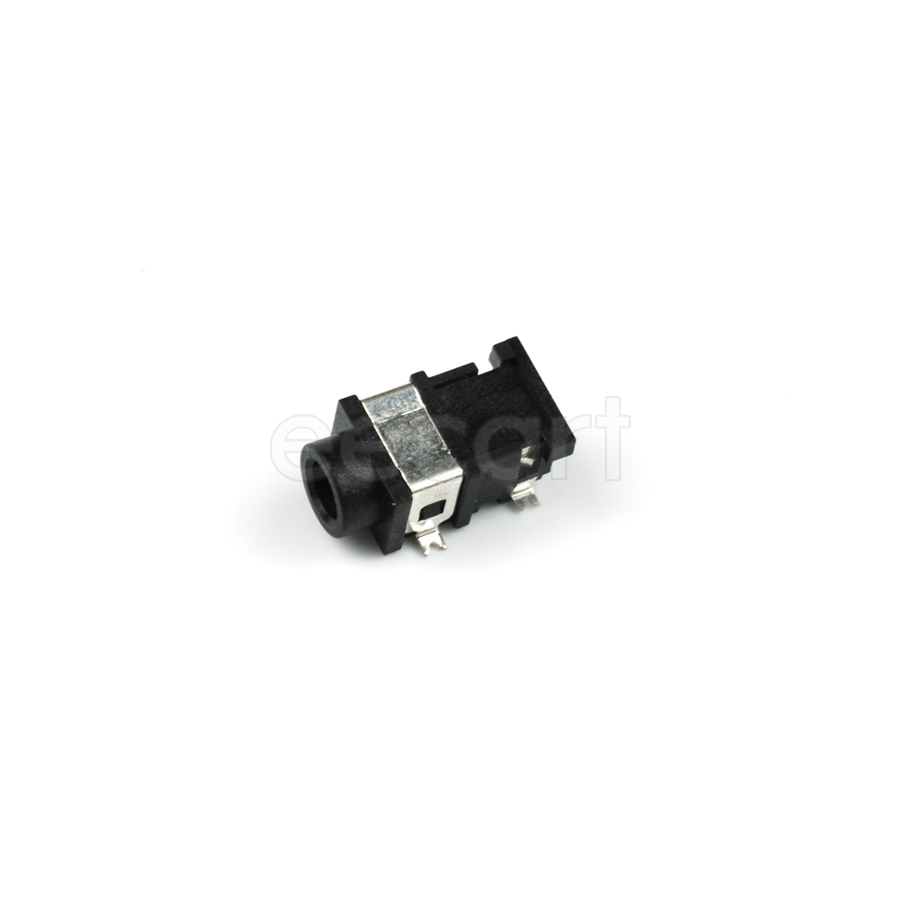

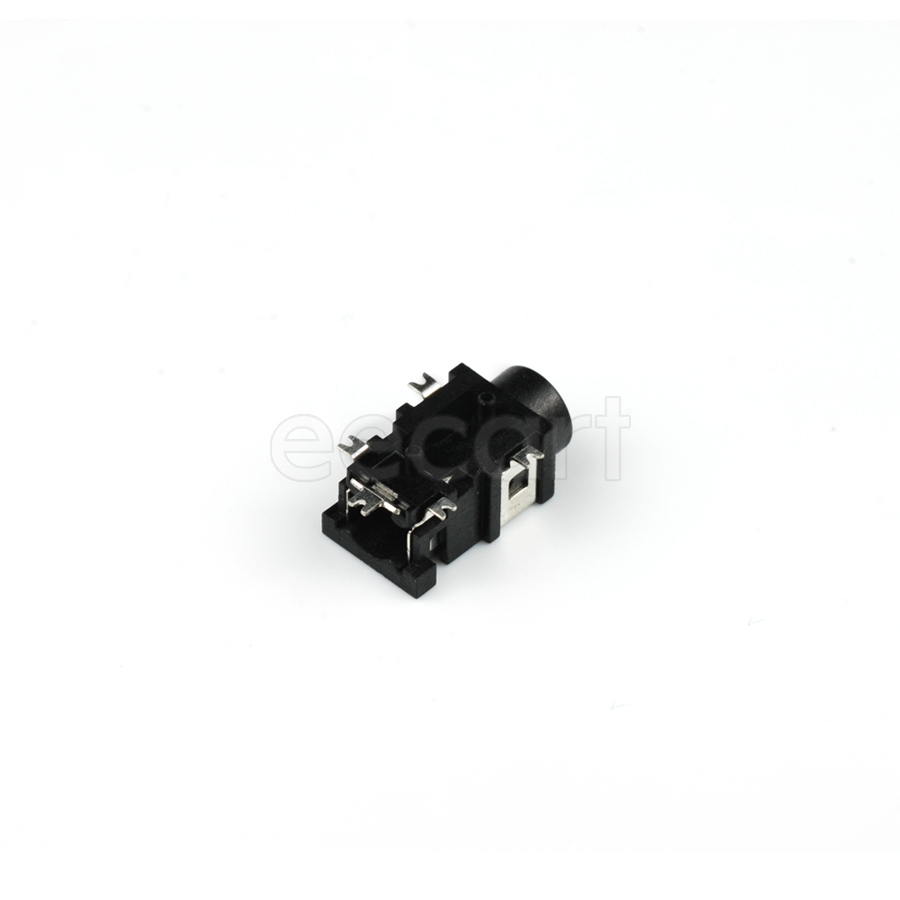

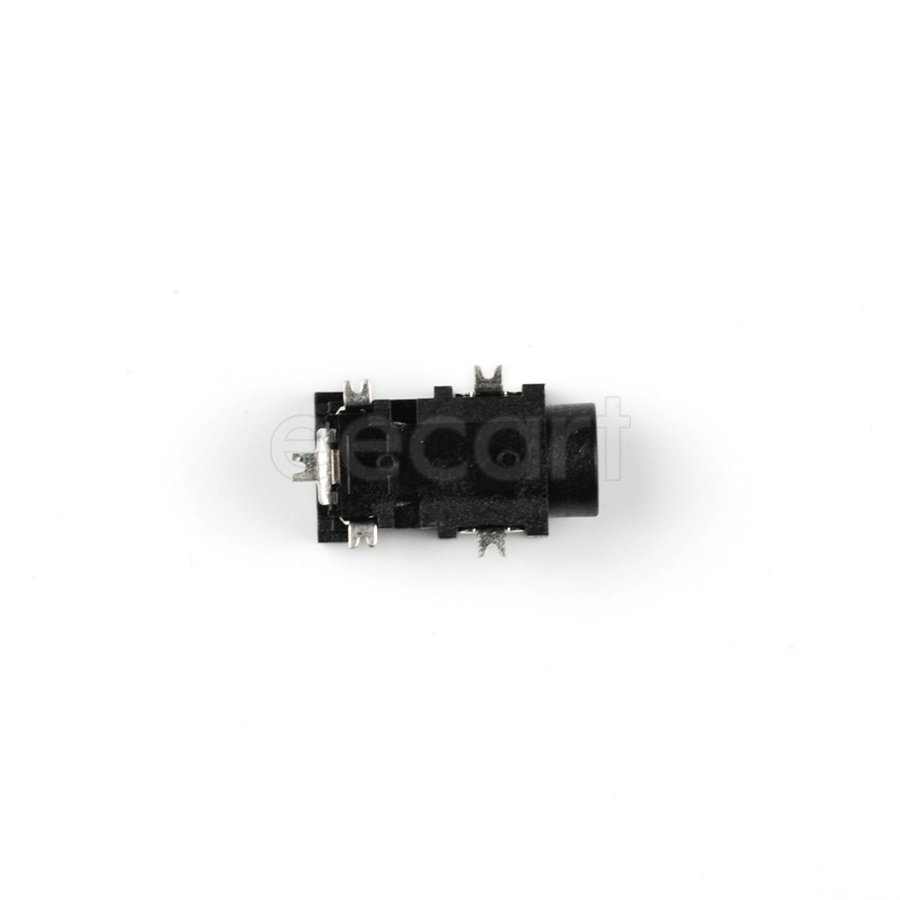

PJ-043-SMT-TR
Manufacturer:
Same Sky
Mfr.Part #:
PJ-043-SMT-TR
Datasheet:
Description:
Power Connectors SMD/SMT Current Rating:2 A Voltage Rating:24 V Jack Male
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating | 24 V |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Gender | Male |
| Shielding | Shielded |
| Housing Material | Thermoplastic |
| Outside Diameter | 3.2 mm |
| Housing Color | Black |
| Inside Diameter | 1 mm |
| Number of Conductors | 2 |
| Contact Gender | Male |
| Schedule B | 8536695050 |
| Number of Contacts | 3 |
| Number of Positions | 2 |
| Connector Type | Jack |
| Packaging | Reel |
Stock: 13680
Distributors
pcbx
pcbxUnit Price$0.40694
Ext.Price$0.40694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40694 | $0.40694 |
| 10 | $0.40609 | $4.06090 |
| 25 | $0.38313 | $9.57825 |
| 50 | $0.36147 | $18.07350 |
| 100 | $0.34104 | $34.10400 |
| 300 | $0.32176 | $96.52800 |
| 500 | $0.30357 | $151.78500 |
| 1000 | $0.28640 | $286.40000 |
